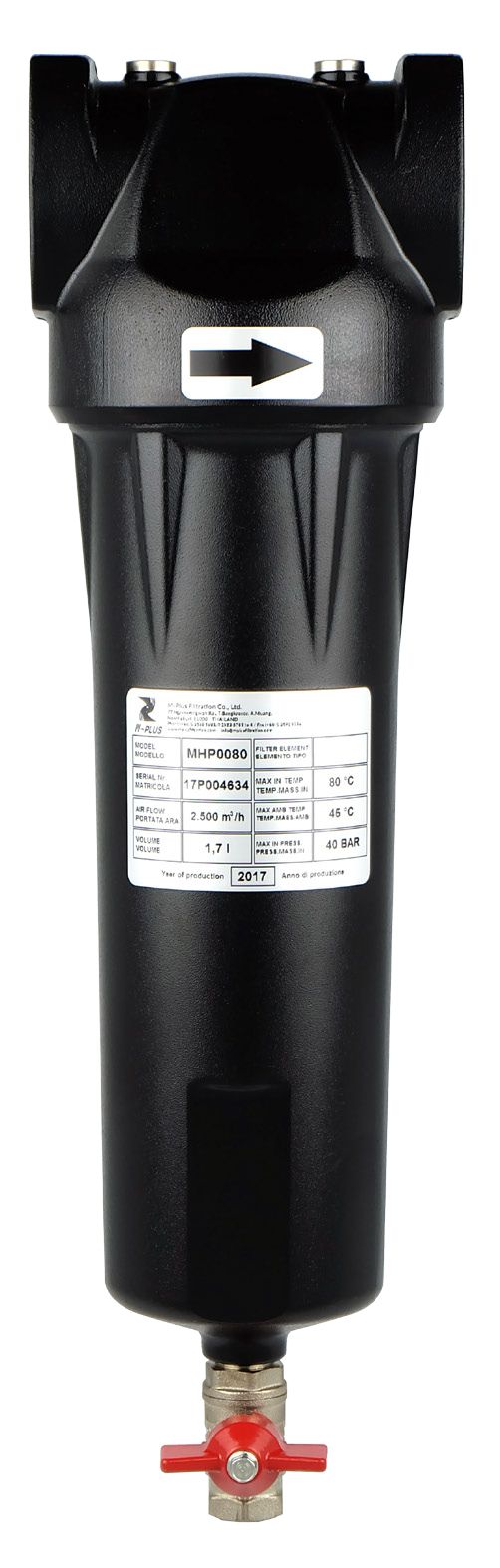

High Pressure Filters 40bar – MHP

For high pressure systems (40 bar). The strong mechanical resistance makes this filter the ideal initial protection of a compressed air system to retain impurities and, for example, it is suitable as a post-filter for adsorption dryers.

ELEMENT FILTER GRADES

P - Pre-filter suitable for the removal of solid particles down to

      5 micron including liquids, emulsions and oil particles.

S - Interception type filters suitable for solid and oil particles up to

      1 micron - 0,1 mg/m³.

X - Interception type filters suitable for solid and oil particles up to

      0,01 micron - 0,01 mg/m³.

Z - There are treatments in industrial plants which in addition to oil

      free air, require the elimination of oil vapors and odor.


 STANDARD CONDITIONS

- Ambient temperature: 25°C

- Working pressure: 40 bar

- Inlet air temperature: 20°C

- Max inlet air temperature 100°C (60°C on Z)
